C200

Component ID: 25
Component : C200

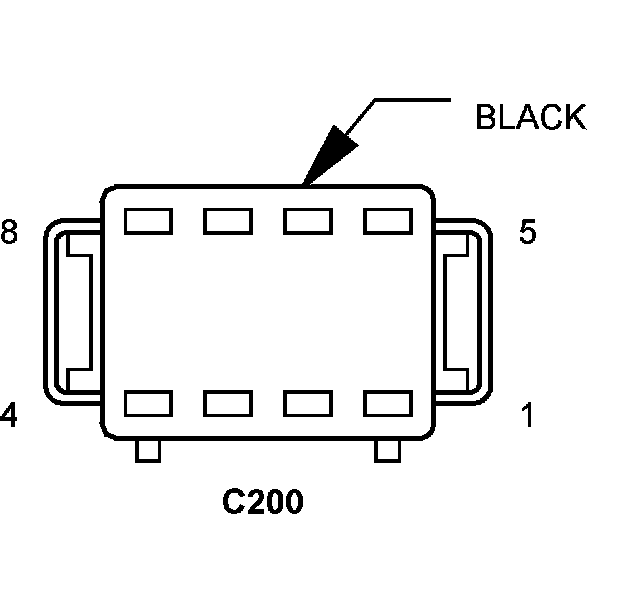

Connector:
Name : C200
Color : BLACK
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 18BK/DG RIGHT TURN SIGNAL OUTPUT
Pin Circuit Description
1 18BK/DG RIGHT TURN SIGNAL OUTPUT
2 16VT FUSED IGNITION SWITCH OUTPUT
2 20VT FUSED IGNITION SWITCH OUTPUT
3 18BK/WT LEFT TURN SIGNAL OUTPUT
3 18BK/WT LEFT TURN SIGNAL OUTPUT
4 22BK/BL SCI TRANSMIT
4 20BK/BL SCI TRANSMIT
5 18RD/DG FUSED B(+)
6 20RD/YL SCI TRANSMIT
7 - -
8 - -

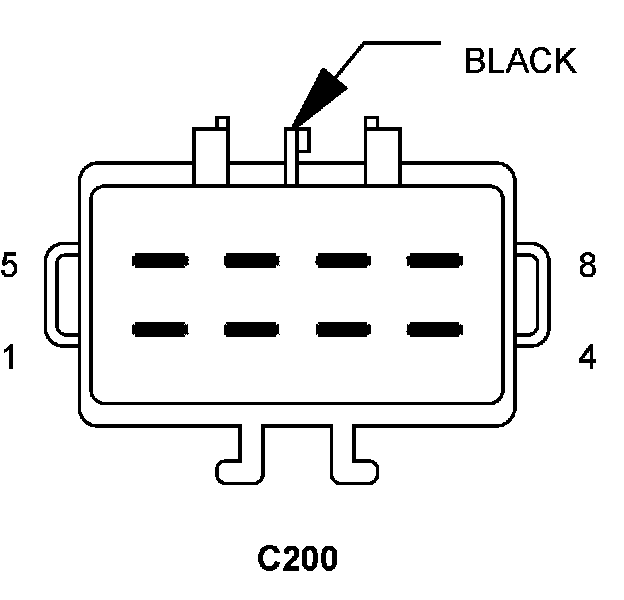

Connector:
Name : C200
Color : BLACK
# of pins : 8
Gender : MALE




Pin Circuit Description
1 18BK/DG RIGHT TURN SIGNAL OUTPUT
2 16VT FUSED IGNITION SWITCH OUTPUT
3 18BK/WT LEFT TURN SIGNAL OUTPUT
4 22BK/BL SCI TRANSMIT
4 22BK/BL SCI TRANSMIT
5 18RD/DG FUSED B(+)
5 18RD/DG FUSED B(+)
6 22RD/YL SCI TRANSMIT
6 22RD/YL SCI TRANSMIT
7 - -
8 - -
