C208

Component ID: 29
Component : C208

Connector:
Name : C208
Color :
# of pins : 5

Pin Circuit Description
1 20VT DRIVER SQUIB 1 LINE 1
2 20DG DRIVER SQUIB 1 LINE 2
3 - -
4 20BL DRIVER SQUIB 2 LINE 2
5 20BK DRIVER SQUIB 2 LINE 1

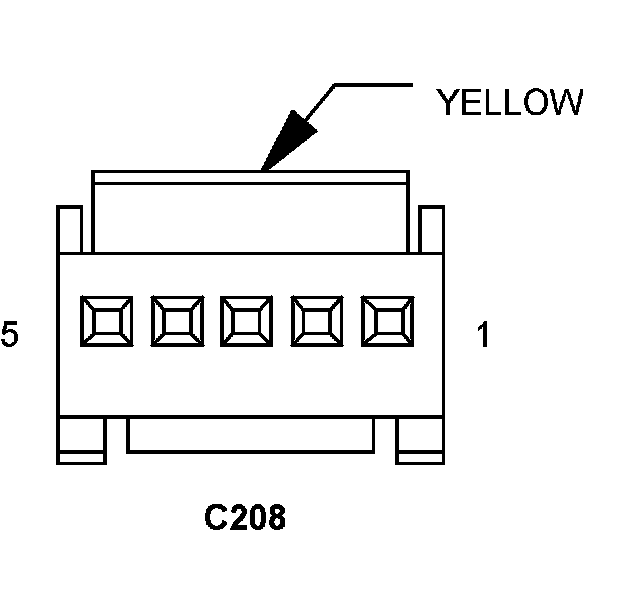

Connector:
Name : C208
Color : YELLOW
# of pins : 5

Pin Circuit Description
1 20VT DRIVER SQUIB 1 LINE 1
2 20DG DRIVER SQUIB 1 LINE 2
3 - -
4 20BL DRIVER SQUIB 2 LINE 2
5 20BK DRIVER SQUIB 2 LINE 1
