C210

Component ID: 30
Component : C210

Connector:

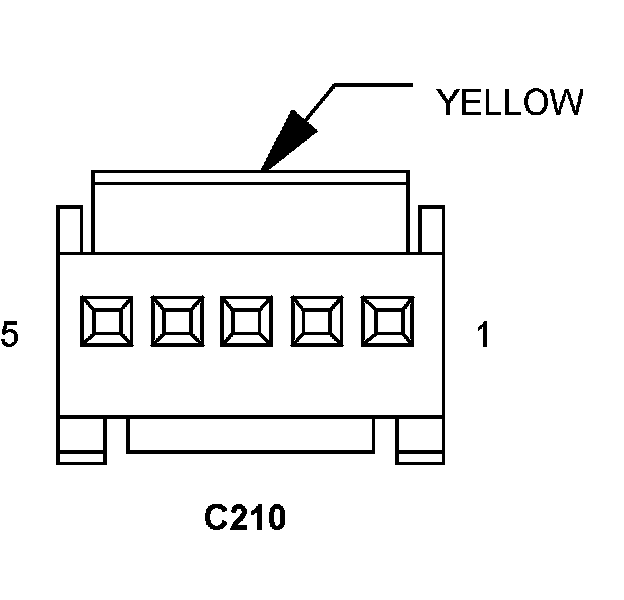

Name : C210
Color : YELLOW
# of pins : 5
Gender : FEMALE

Pin Circuit Description
1 20BL/DG PASSENGER SQUIB LINE 2
2 20BR/DG PASSENGER SQUIB LINE 1
3 - -
4 20BL/WT PASSENGER KNEE BLOCKER SQUIB LINE 2
5 20BR/WT PASSENGER KNEE BLOCKER SQUIB LINE 1

Component Location - 16

Connector:

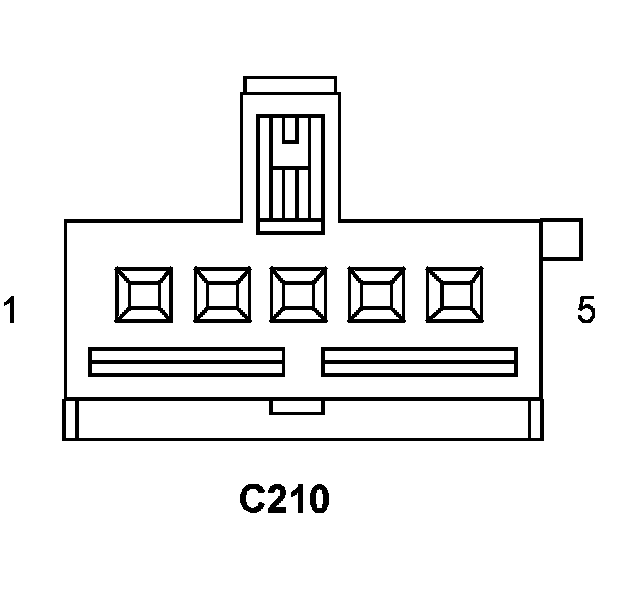

Name : C210
Color :
# of pins : 5
Gender : MALE

Pin Circuit Description
1 20BL/DG PASSENGER SQUIB LINE 2
2 20BR/DG PASSENGER SQUIB LINE 1
3 - -
4 20BL/WT PASSENGER KNEE BLOCKER SQUIB LINE 2
5 20BR/WT PASSENGER KNEE BLOCKER SQUIB LINE 1

Component Location - 16
