C219

Component ID: 32
Component : C219

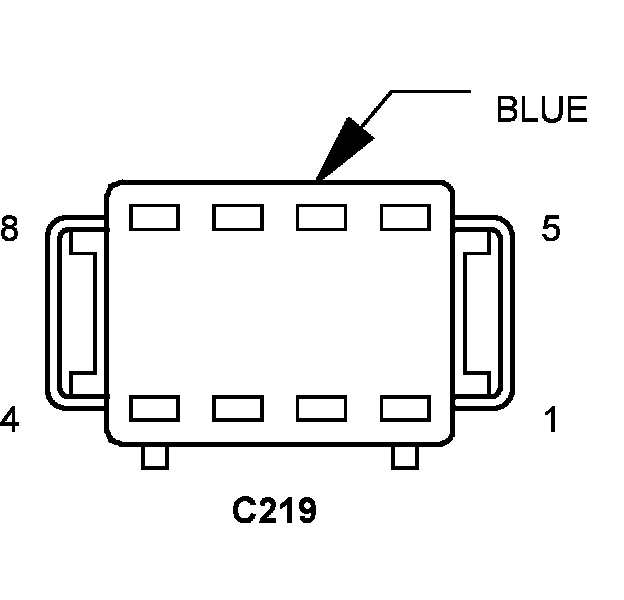

Connector:
Name : C219
Color : BLUE
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 20BK/RD 5 VOLT SUPPLY
2 20BR/YL SENSOR GROUND
2 20BR/YL SENSOR GROUND
3 20DG FUEL TANK PRESSURE SENSOR SIGNAL
3 18DG/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
4 18RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
5 18BR/BL CHARCOAL CANISTER SHUTOFF VALVE CONTROL
6 16RD/GY DRIVER SEAT BELT SWITCH SENSE
7 - -
8 20BK/BL SCI TRANSMIT

Component Location - 16






Connector:
Name : C219
Color : BLUE
# of pins : 8
Gender : MALE




Pin Circuit Description
1 20BK/RD 5 VOLT SUPPLY
2 20BR/YL SENSOR GROUND
3 20DG FUEL TANK PRESSURE SENSOR SIGNAL
3 18DG/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
4 18RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
5 18BR/BL CHARCOAL CANISTER SHUTOFF VALVE CONTROL
6 16RD/GY DRIVER SEAT BELT SWITCH SENSE
7 - -
8 20BK/BL SCI TRANSMIT

Component Location - 16
