C224

Component ID: 34
Component : C224

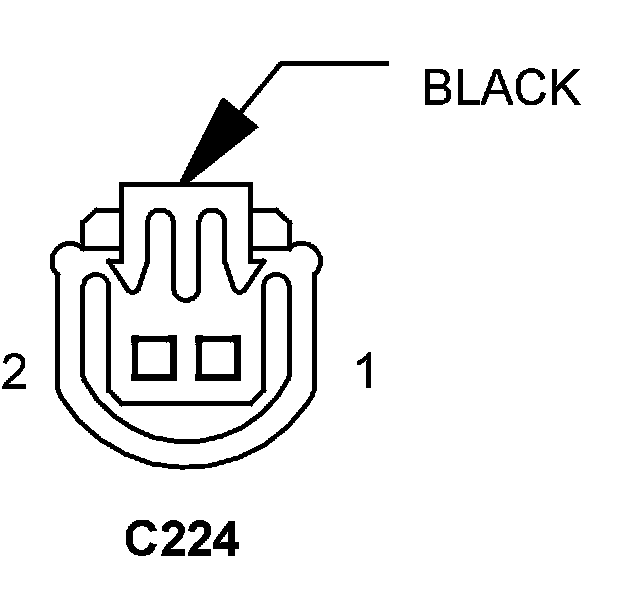

Connector:
Name : C224
Color : BLACK
# of pins : 2
Gender : FEMALE

Pin Circuit Description
1 20BL/BK RIGHT SIDE SQUIB LINE 1
2 20BL/WT RIGHT SIDE SQUIB LINE 2

Component Location - 20

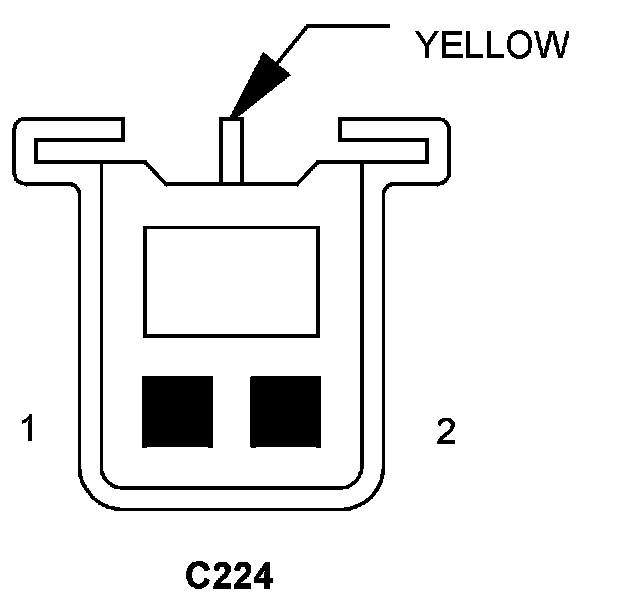

Connector:
Name : C224
Color : YELLOW
# of pins : 2
Gender : MALE

Pin Circuit Description
1 20BL/RD RIGHT SIDE SQUIB LINE 1
2 20BL/GY RIGHT SIDE SQUIB LINE 2

Component Location - 20
