C226

Component ID: 35
Component : C226

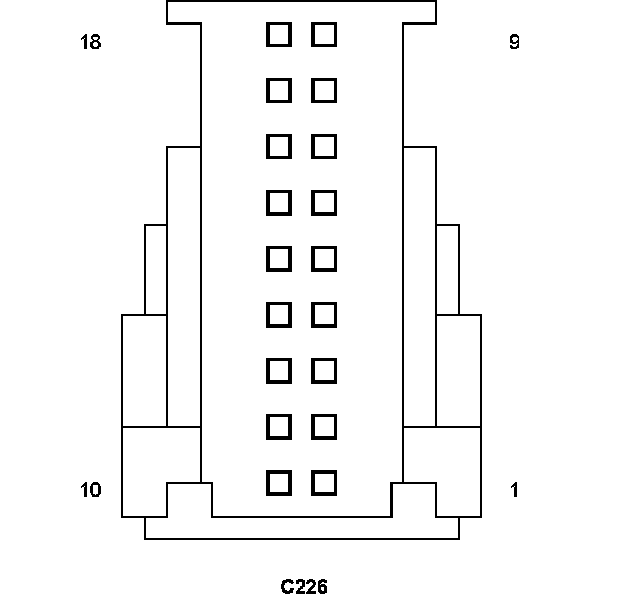

Connector:
Name : C226
Color :
# of pins : 18
Gender : FEMALE




Pin Circuit Description
1 18GY WASHER PUMP MOTOR CONTROL
2 20BR/VT LEFT COOLANT CIRCULATION VALVE CONTROL
3 20BR/RD RIGHT COOLANT CIRCULATION VALVE CONTROL
4 20BR/DG COOLANT CIRCULATION PUMP CONTROL
5 22BL SCI TRANSMIT
6 18RD/WT A/C PRESSURE SENSOR 5 VOLT SUPPLY
7 18BL/DG A/C COMPRESSOR CLUTCH CONTROL
8 18BR/YL A/C PRESSURE SENSOR GROUND
9 18BL/RD A/C PRESSURE SENSOR SIGNAL
10 20DG/YL SCI RECEIVE
11 20BL/YL STEERING ANGLE SENSOR SIGNAL
12 - -
13 20RD/WT FUSED IGNITION SWITCH OUTPUT
14 20BR/YL SENSOR GROUND
15 - -
16 - -
17 - -
18 - -

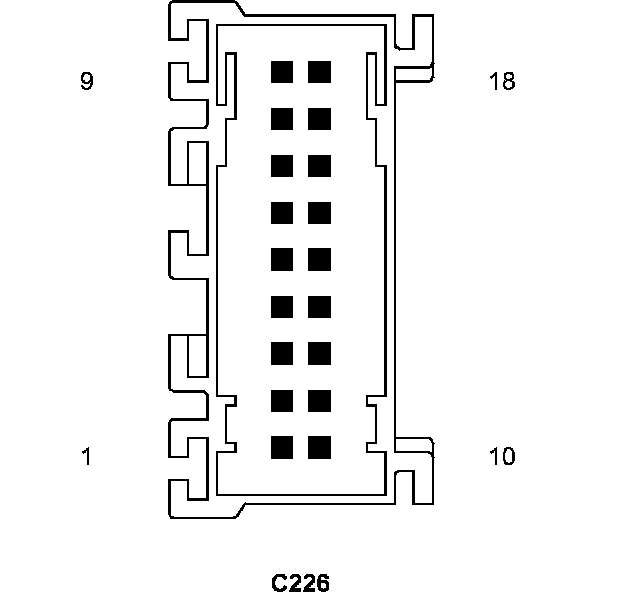

Connector:
Name : C226
Color :
# of pins : 18
Gender : MALE




Pin Circuit Description
1 18GY WASHER PUMP MOTOR CONTROL
2 20BR/VT LEFT COOLANT CIRCULATION VALVE CONTROL
3 20BR/RD RIGHT COOLANT CIRCULATION VALVE CONTROL
4 20BR/DG COOLANT CIRCULATION PUMP CONTROL
5 22BL SCI TRANSMIT
6 22RD/WT A/C PRESSURE SENSOR 5 VOLT SUPPLY
7 18BL/DG A/C COMPRESSOR CLUTCH CONTROL
8 20BR/YL A/C PRESSURE SENSOR GROUND
9 22BL/RD A/C PRESSURE SENSOR SIGNAL
10 20DG/YL SCI RECEIVE
11 20BL/YL STEERING ANGLE SENSOR SIGNAL
12 - -
13 20RD/WT FUSED IGNITION SWITCH OUTPUT
14 20BR/YL SENSOR GROUND
15 - -
16 - -
17 - -
18 - -
