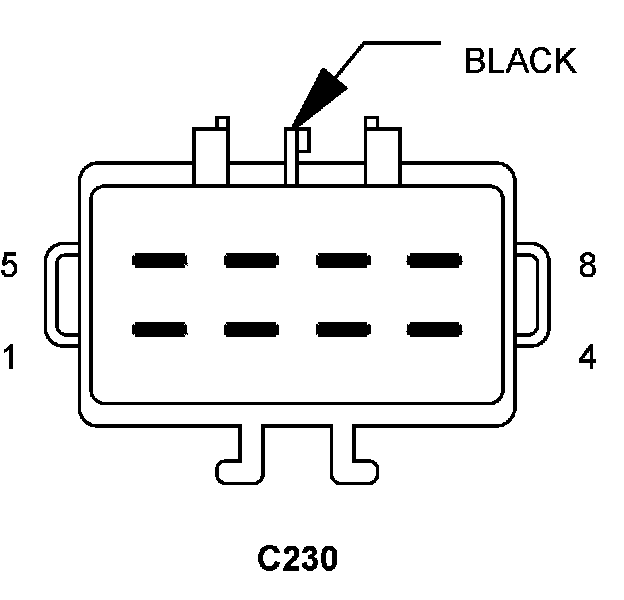

C230




Component ID: 38
Component : C230

Connector:
Name : C230
Color : BLACK
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 18PK/RD/WT FUSED HEATED MIRROR SUPPLY
2 18BR GROUND
3 18WT RIGHT MIRROR VERTICAL DRIVER
4 18GY RIGHT MIRROR COMMON DRIVER
5 18BK RIGHT MIRROR HORIZONTAL DRIVER
6 - -
7 - -
8 - -

Component Location - 20






Connector:
Name : C230
Color : BLACK
# of pins : 8
Gender : MALE




Pin Circuit Description
1 18PK/RD/WT FUSED HEATED MIRROR SUPPLY
2 18BR GROUND
3 18WT RIGHT MIRROR VERTICAL DRIVER
4 18GY/VT RIGHT MIRROR COMMON DRIVER
5 18BK/VT RIGHT MIRROR HORIZONTAL DRIVER
6 - -
7 - -
8 - -

Component Location - 20
