C302

Component ID: 43
Component : C302

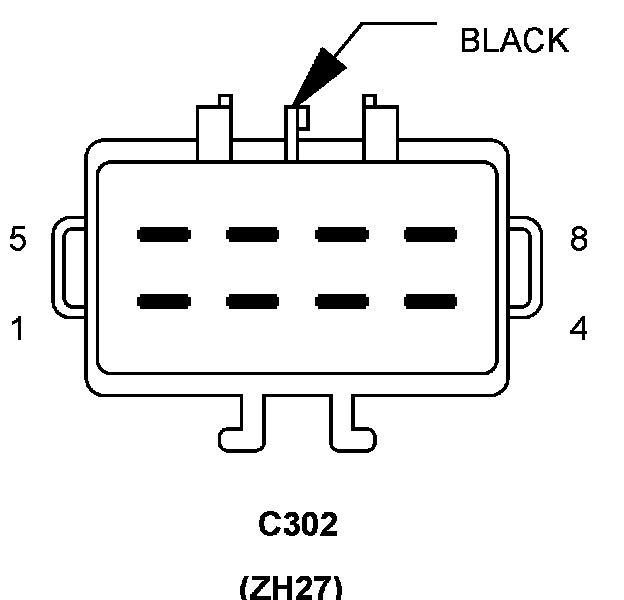

Connector:
Name : C302
Color : BLACK
# of pins : 8
Qualifier : (ZH27)
Gender : FEMALE

Pin Circuit Description
1 16RD/WT REAR SPOILER DRIVER (DOWN)
2 16BR/WT REAR SPOILER DRIVER (UP)
3 20BR/GY SPOILER LIMIT SWITCH SIGNAL (UP)
4 20BR/YL SPOILER LIMIT SWITCH SIGNAL (DOWN)
5 20BK/BL BRAKE LAMP RELAY OUTPUT
6 18GY/VT FUSED ILLUMINATION CONTROL MODULE OUTPUT
7 18GY/YL FUSED ILLUMINATION CONTROL MODULE OUTPUT
8 14BR GROUND

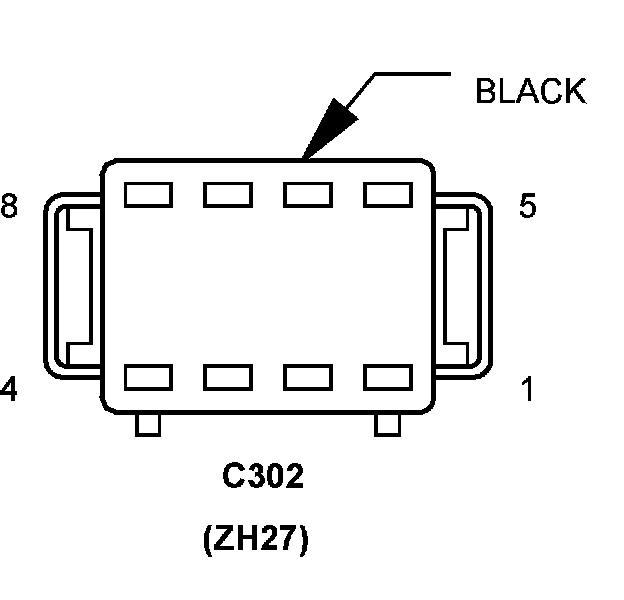

Connector:
Name : C302
Color : BLACK
# of pins : 8
Qualifier : (ZH27)
Gender : MALE

Pin Circuit Description
1 16RD/WT REAR SPOILER DRIVER (DOWN)
2 16BR/WT REAR SPOILER DRIVER (UP)
3 20BR/GY SPOILER LIMIT SWITCH SIGNAL (UP)
4 20BR/YL SPOILER LIMIT SWITCH SIGNAL (DOWN)
5 20BK/BL BRAKE LAMP RELAY OUTPUT
6 18GY/VT FUSED ILLUMINATION CONTROL MODULE OUTPUT
7 18GY/YL FUSED ILLUMINATION CONTROL MODULE OUTPUT
8 14BR GROUND
