Cigarette Lighter

Component ID: 50

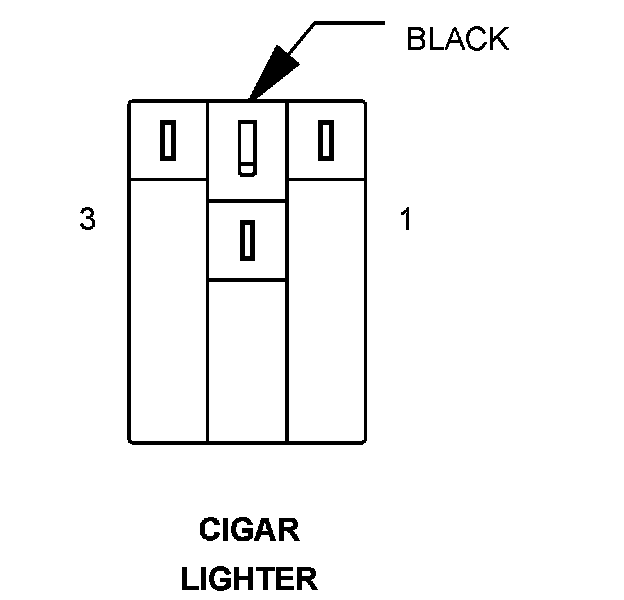

Component : CIGAR LIGHTER

Connector:
Name : CIGAR LIGHTER
Color : BLACK
# of pins : 3

Pin Circuit Description
1 16BR GROUND
2 - -
3 16BK/BL FUSED IGNITION SWITCH OUTPUT
