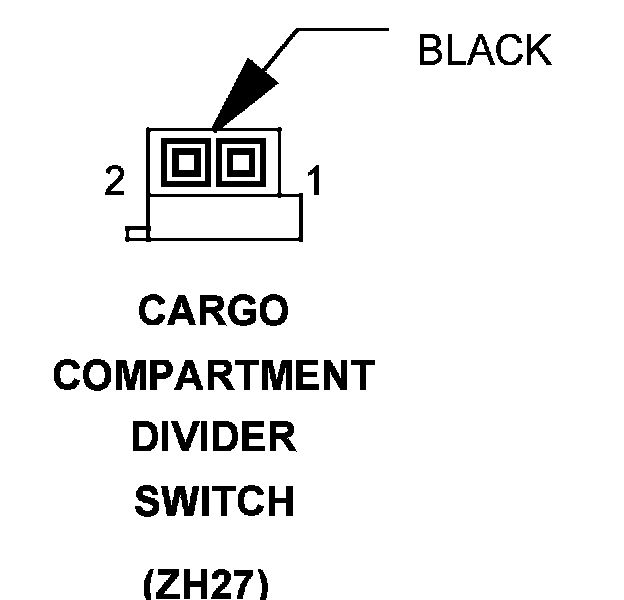

Cargo Compartment Divider Switch
Component ID:
45
Component :
CARGO COMPARTMENT DIVIDER SWITCH
Connector:
Name :
CARGO COMPARTMENT DIVIDER SWITCH
Color :
BLACK
# of pins :
2
Qualifier :
(ZH27)
Pin Circuit Description 1
20BR
GROUND
2
20BR/BK
CARGO DIVIDER SENSE
