Left Rotation Relay
Component ID:
195
Component :

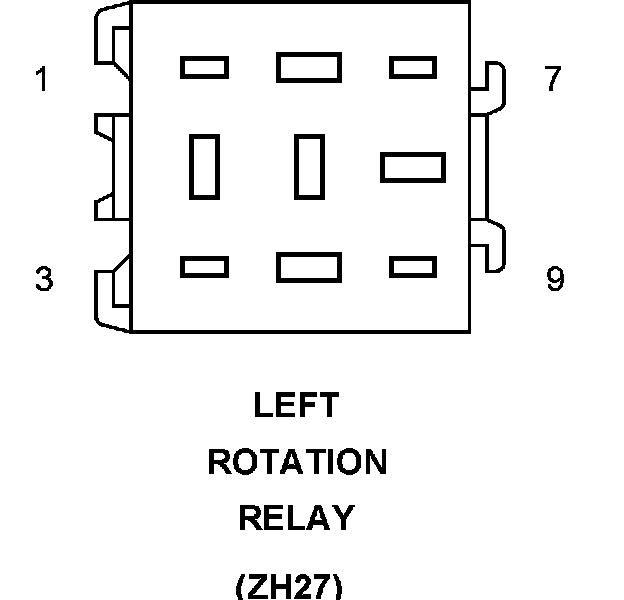

LEFT ROTATION RELAY
Connector:
Name :
LEFT ROTATION RELAY
Color :
# of pins :
9
Qualifier :
(ZH27)
Pin Circuit Description 1
-
-
2
RD
FUSED B(+)
3
-
-
4
BK
ROTATION RELAY GROUND
5
BK
GROUND
6
DG
LEFT ROTATION RELAY CONTROL
7
-
-
8
BK
LEFT ROTATION RELAY OUTPUT
9
-
-
