Evaporative Shut Valve
Component ID:
49
Component :

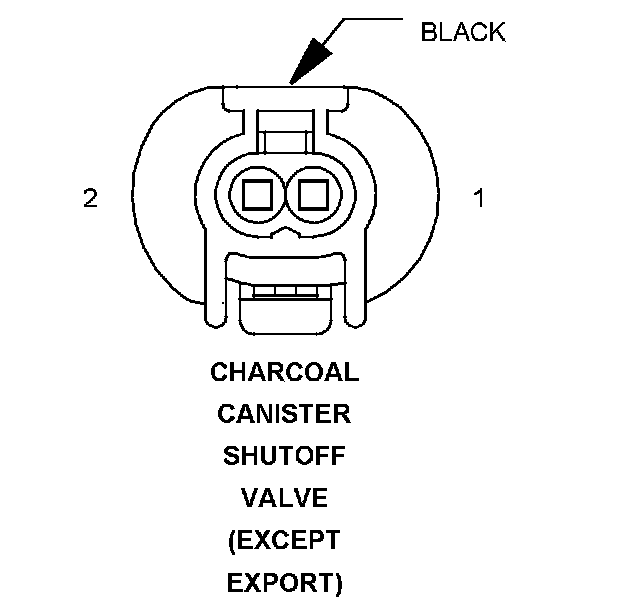

CHARCOAL CANISTER SHUTOFF VALVE
Connector:
Name :
CHARCOAL CANISTER SHUTOFF VALVE
Color :
BLACK
# of pins :
2
Qualifier :
(EXCEPT EXPORT)
Pin Circuit Description 1
18RD/DG
FUSED ENGINE CONTROL RELAY OUTPUT
2
18BR/BL
CHARCOAL CANISTER SHUTOFF VALVE CONTROL
