Hydraulic Brake Booster




Component ID: 14
Component : BAS BRAKE BOOSTER

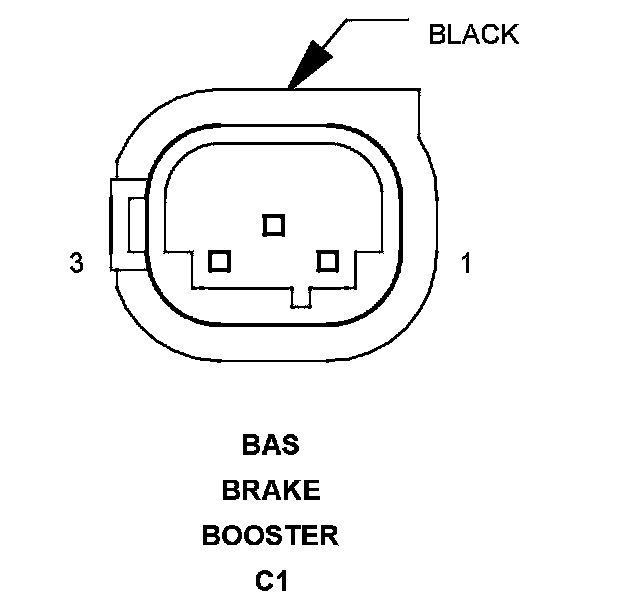

Connector:
Name : BAS BRAKE BOOSTER C1
Color : BLACK
# of pins : 3




Pin Circuit Description
1 20PK/YL 5 VOLT SUPPLY
2 20VT/DG BAS TRAVEL SENSOR SIGNAL
3 20YL/DG SENSOR GROUND

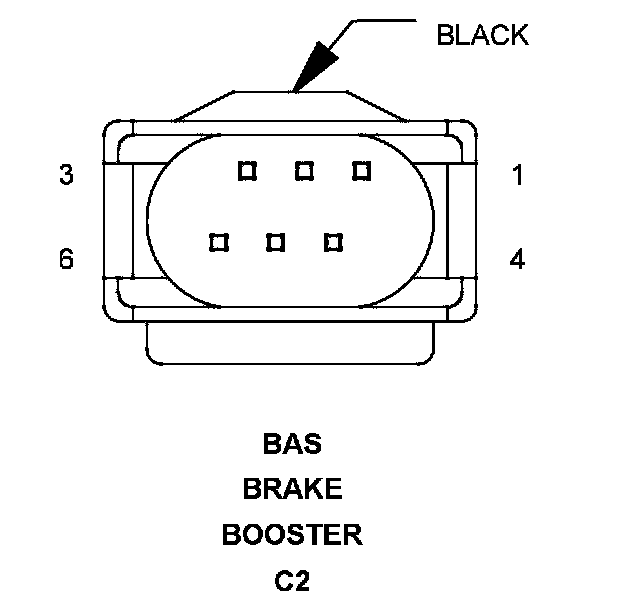

Connector:
Name : BAS BRAKE BOOSTER C2
Color : BLACK
# of pins : 6




Pin Circuit Description
1 20GY BAS RELEASE SWITCH SENSOR (RELEASED)
2 20PK 12 VOLT SUPPLY
3 18YL/VT BAS RELEASE SWITCH SENSOR (APPLIED)
4 18DG/BL 5 VOLT SUPPLY
5 20BK/VT BAS CONTROL
6 - -
