Brake Lamp Relay

Component ID: 20

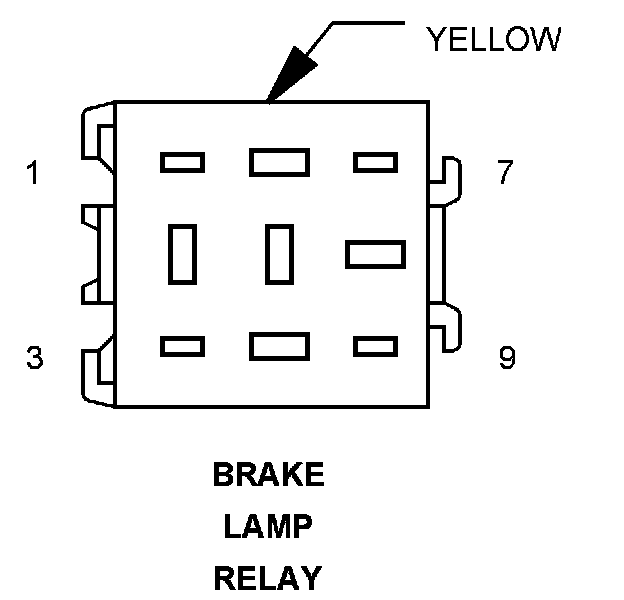

Component : BRAKE LAMP RELAY

Connector:
Name : BRAKE LAMP RELAY
Color : YELLOW
# of pins : 9

Pin Circuit Description
1 - -
2 18BK/RD BRAKE LAMP RELAY OUTPUT
3 - -
4 18RD/WT FUSED IGNITION SWITCH OUTPUT
4 18BK/WT FUSED IGNITION SWITCH OUTPUT
5 - -
6 20BK/YL BRAKE LAMP RELAY CONTROL
7 - -
8 18BK/WT FUSED IGNITION SWITCH OUTPUT
9 - -

Component Location - 3
