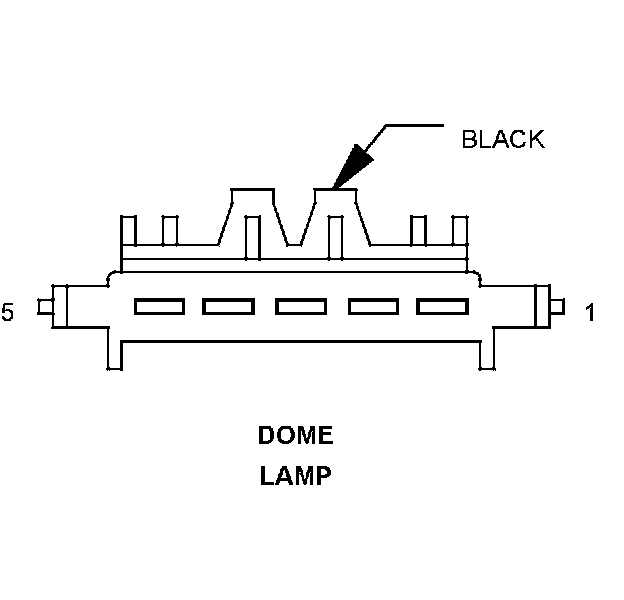

Dome Lamp

Component ID: 68
Component : DOME LAMP

Connector:
Name : DOME LAMP
Color : BLACK
# of pins : 5

Pin Circuit Description
1 18BR/YL CARGO LAMP CONTROL
2 18BR GROUND
3 18BL/BR DOME LAMP CONTROL
4 18RD/GY FUSED B(+)
5 - -
