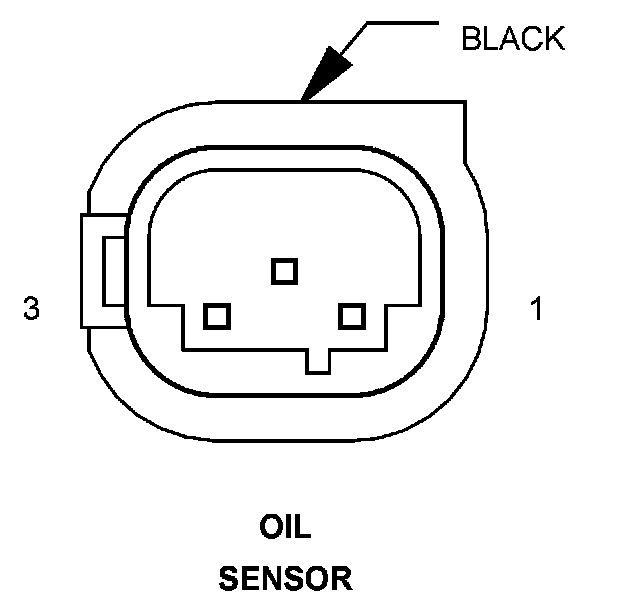

Oil Pressure Sensor
Component ID:
209
Component :
OIL SENSOR
Connector:
Name :
OIL SENSOR
Color :
BLACK
# of pins :
3
Pin
Circuit
Description
1
20GY/BL
OIL SENSOR SIGNAL
2
20BR/BK
SENSOR GROUND
3
20RD/YL
5 VOLT SUPPLY
