Power Seat Relay
Component ID:
227
Component :

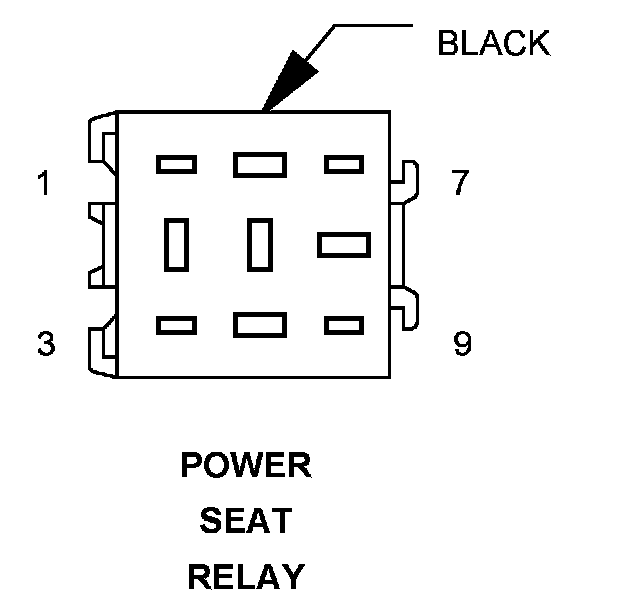

POWER SEAT RELAYConnector:
Name :
POWER SEAT RELAY Color :
BLACK
# of pins :
9
Pin Circuit Description 1
20BR/GY
LEFT DOOR AJAR SWITCH SENSE
2
14RD/WT
POWER SEAT RELAY SWITCHED OUTPUT
3
18RD
FUSED B(+)
4
18PK/YL
FUSED IGNITION SWITCH OUTPUT
5
-
-
6
18BR
GROUND
7
20BR/PK
RIGHT DOOR AJAR SWITCH SENSE
8
14RD
FUSED B(+)
9
-
-
