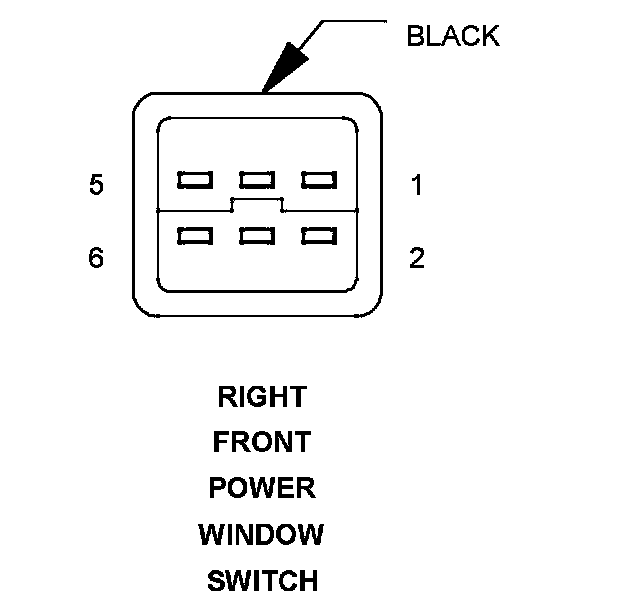

Right Front Power Window Switch
Component ID:
254
Component :
RIGHT FRONT
POWER WINDOW SWITCHConnector:
Name :
RIGHT FRONT
POWER WINDOW SWITCH Color :
BLACK
# of pins :
6
Pin Circuit Description 1
20BR
GROUND
2
20WT/BL
RIGHT
POWER WINDOW SWITCH SENSE
3
-
-
4
-
-
5
20DG/WT
FUSED ILLUMINATION CONTROL MODULE OUTPUT
6
-
-
