Seat Occupant Sensor
Component ID:
224
Component :

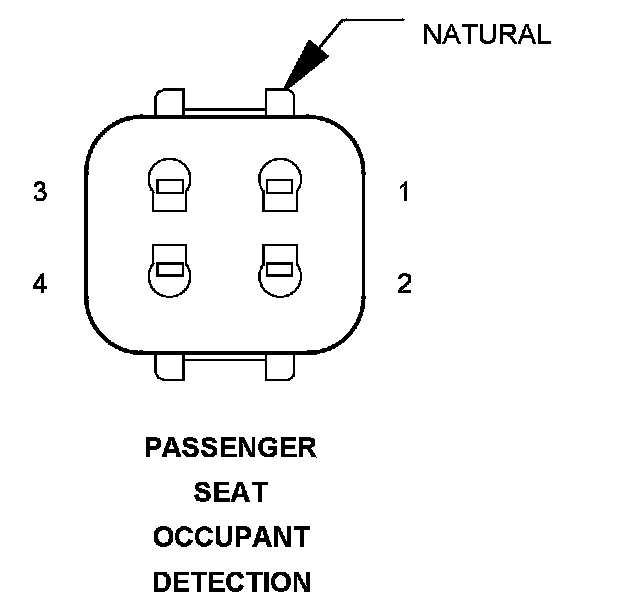

PASSENGER SEAT OCCUPANT DETECTION
Connector:
Name :
PASSENGER SEAT OCCUPANT DETECTION
Color :
NATURAL
# of pins :
4
Pin Circuit Description 1
20RD/YL
FUSED B(+)
2
20BR
GROUND
3
20WT/DG
CAN INTERIOR BUS (125K) (+)
4
20BK/DG
CAN INTERIOR BUS (125K) (-)
Component Location - 16
