Shifter A/T

Component ID: 331
Component : SHIFT LEVER ASSEMBLY

Connector:

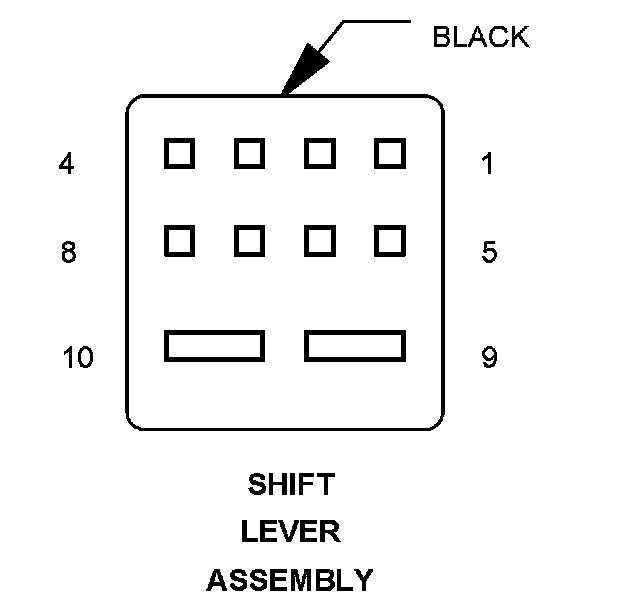

Name : SHIFT LEVER ASSEMBLY
Color : BLACK
# of pins : 10

Pin Circuit Description
1 - -
2 20GY/BL FUSED ILLUMINATION FEED
3 22RD/YL SCI TRANSMIT
4 20BR GROUND
5 20RD/BL BTSI FEED
6 22WT CAN C BUS (+)
7 22DG CAN C BUS (-)
8 20RD/DG TRACTION SYSTEM RELAY OUTPUT
9 20PK/RD FUSED IGNITION SWITCH OUTPUT
10 20GY/YL SHIFT LEVER ASSEMBLY REVERSE SUPPLY VOLTAGE

Component Location - 15
