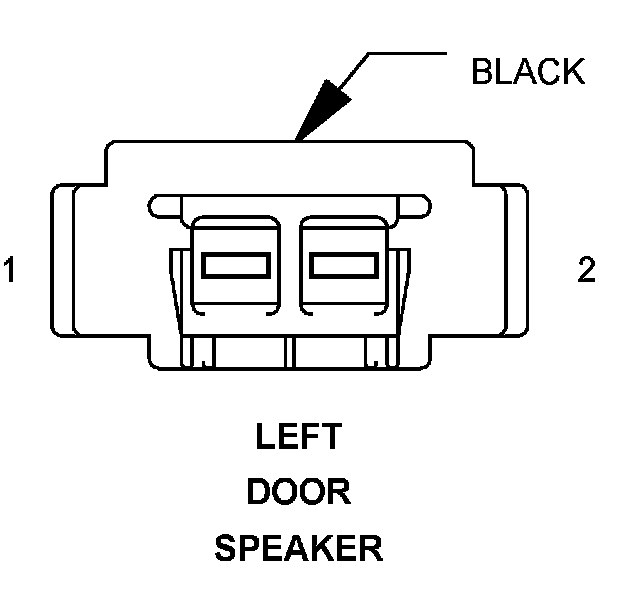

Left Door Speaker

Component ID: 173
Component : LEFT DOOR SPEAKER

Connector:
Name : LEFT DOOR SPEAKER
Color : BLACK
# of pins : 2

Pin Circuit Description
1 16BR/DG AMPLIFIED LEFT DOOR SPEAKER (-)
2 16BK/BL AMPLIFIED LEFT DOOR SPEAKER (+)
