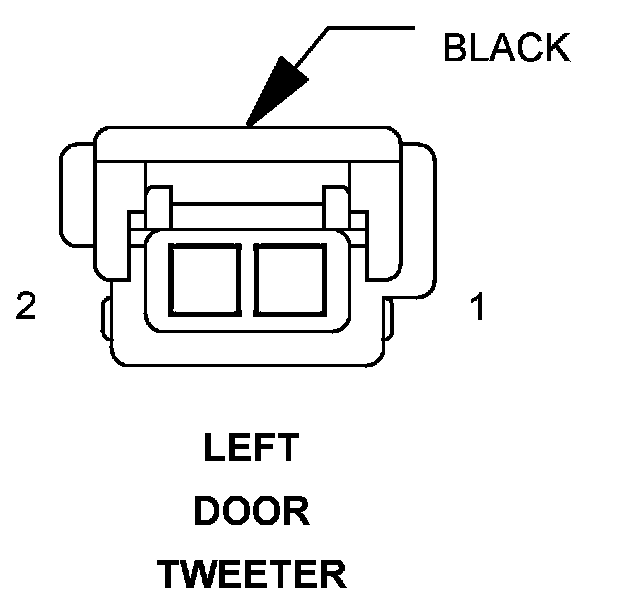

Left Door Tweeter

Component ID: 174
Component : LEFT DOOR TWEETER

Connector:
Name : LEFT DOOR TWEETER
Color : BLACK
# of pins : 2

Pin Circuit Description
1 18BR/DG AMPLIFIED LEFT DOOR SPEAKER (-)
2 18BK/BL AMPLIFIED LEFT DOOR SPEAKER (+)
