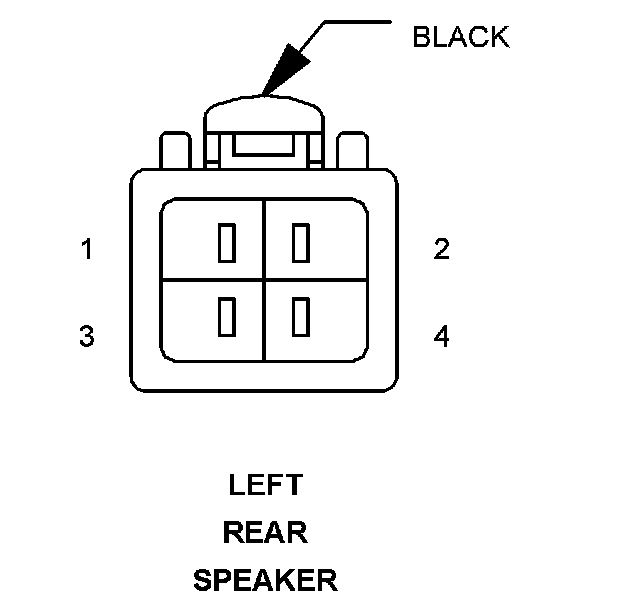

Left Rear Speaker
Component ID:
192
Component :
LEFT REAR SPEAKER
Connector:
Name :
LEFT REAR SPEAKER
Color :
BLACK
# of pins :
4
Pin Circuit Description 1
16PK
AMPLIFIED LEFT REAR SPEAKER (+)
2
16DG
AMPLIFIED LEFT REAR SPEAKER (-)
3
16BL
LEFT REAR SPEAKER SUPPLY VOLTAGE
4
16BK/RD
LEFT REAR SPEAKER GROUND
