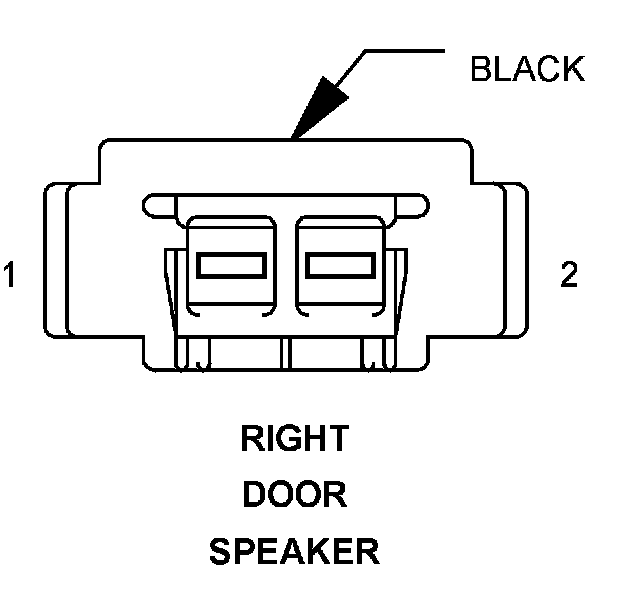

Right Door Speaker
Component ID:
248
Component :
RIGHT DOOR SPEAKER
Connector:
Name :
RIGHT DOOR SPEAKER
Color :
BLACK
# of pins :
2
Pin Circuit Description 1
16BR/DG
AMPLIFIED RIGHT DOOR SPEAKER (-)
2
16BK/BL
AMPLIFIED RIGHT DOOR SPEAKER (+)
Component Location - 20
