Steering Angle Sensor, Traction Control

Component ID: 339
Component : STEERING ANGLE SENSOR

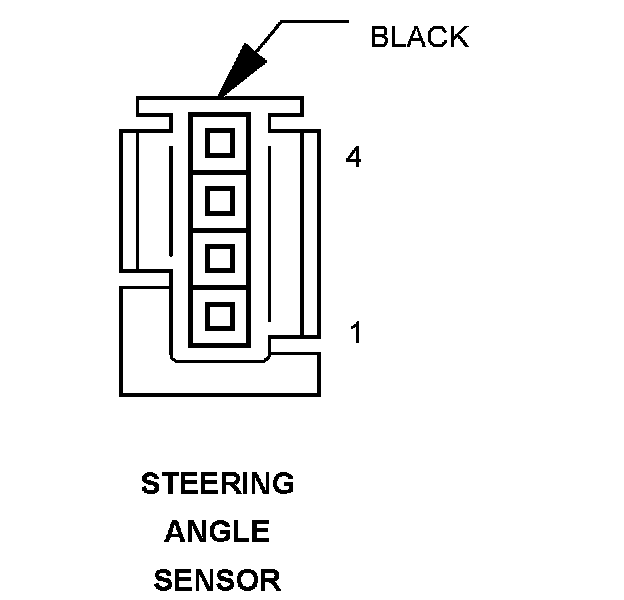

Connector:
Name : STEERING ANGLE SENSOR
Color : BLACK
# of pins : 4

Pin Circuit Description
1 20BL/YL STEERING ANGLE SENSOR SIGNAL
2 20PK/RD FUSED IGNITION SWITCH OUTPUT
3 20BR GROUND
4 18RD/DG FUSED B(+)
