Tire Monitoring System
Component ID:
351
Component :
UNIVERSAL GARAGE DOOR OPENER/TIRE PRESSURE MONITOR
Connector:

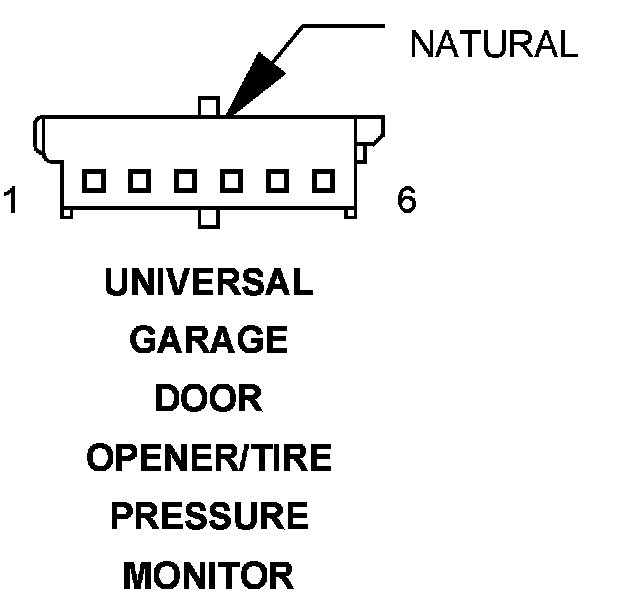

Name :
UNIVERSAL GARAGE DOOR OPENER/TIRE PRESSURE MONITOR
Color :
NATURAL
# of pins :
6
Pin Circuit Description 1
20PK/YL/DG
FUSED IGNITION SWITCH OUTPUT
2
20GY/YL
LOW TIRE PRESSURE WARNING INDICATOR CONTROL
3
20BR
GROUND
4
20BK/BL
SCI TRANSMIT
5
20RD/GY
FUSED B(+)
6
-
-
Component Location - 1
