Anti-Theft Tow Sensor
Component ID:
11
Component :
ANTI-THEFT TOW SENSOR

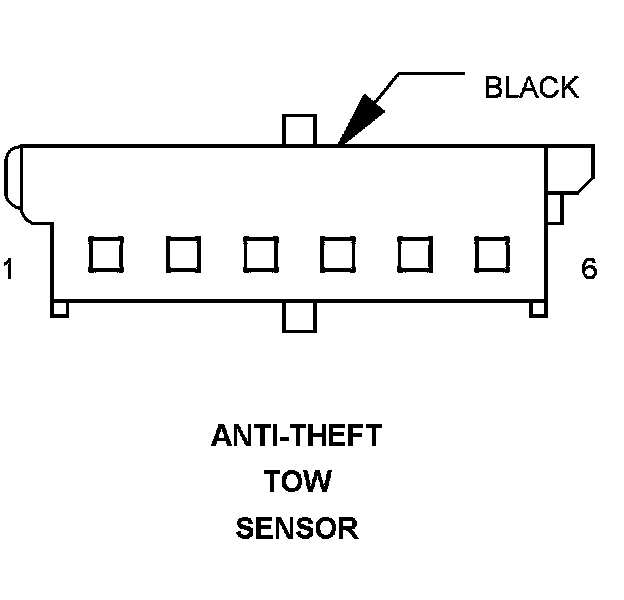

Connector:
Name :
ANTI-THEFT TOW SENSOR
Color :
BLACK
# of pins :
6
Pin Circuit Description 1
-
-
2
-
-
3
-
-
4
22DG/GY
SENSOR GROUND
5
18BR/DG
ANTI-THEFT TOW SENSOR SIGNAL
6
18RD/GY
FUSED B(+)
Component Location - 22
Component Location - 1
