Piston Ring(s) - Installation

INSTALLATION

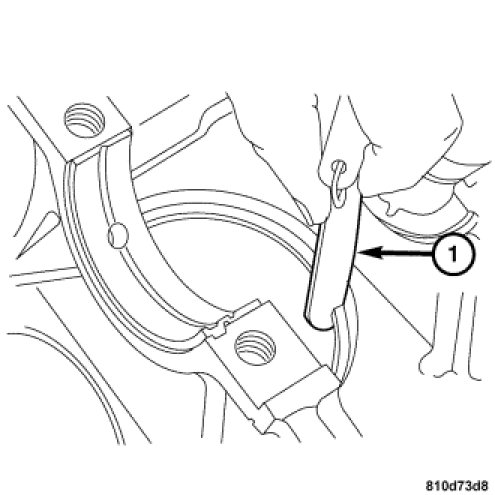

1. Measure the end gap (1) with rings at the bottom of the cylinder.
- Ring # 1 clearance is.20 mm (.007 in.) to.35 mm (.013 in.).
- Ring # 2 clearance is.20 mm (.007 in.) to.40 mm (.015 in.).

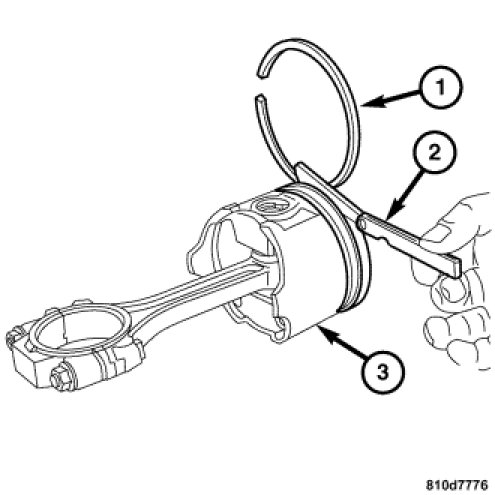

2. Measure the vertical clearance (2) of the piston rings (1).
3. Ring # 1 clearance is.012 mm (.0004 in.) to.060 mm (.002 in.).
4. Ring # 2 clearance is.010 mm (.0003 in.) to.030 mm (.001 in.).

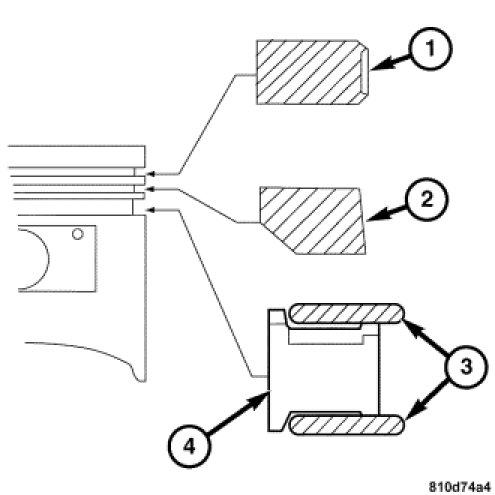

5. Install the rings on the pistons as shown.
- Compression ring (1)
- Sealing ring (2)
- Oil Ring Rail (3)
- Oil Ring Expander (4)

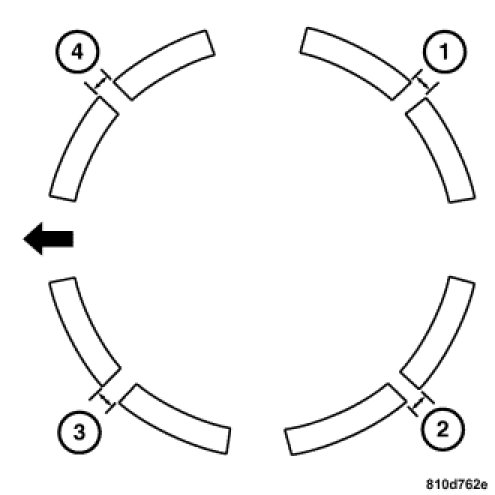

6. The ring gaps when installed must be positioned as shown.
- Ring one (1)
- Upper side rail (2)
- Ring two and spacer expander (3)
- Lower side rail (4)

7. Install the pistons and connecting rods Piston and Connecting Rod - Installation.
