Assembly

INSTALLATION

CAUTION: Risk of injury to skin and eyes from handling hot or glowing objects.

NOTE: Wear protective gloves, protective clothing, and eye protection.

NOTE: If resistance is encountered while driving rocker shaft out of the camshaft bearing bridge, the bearing must be heated. Do not exceed 160° C.





1. Cool the rocker arm shaft.

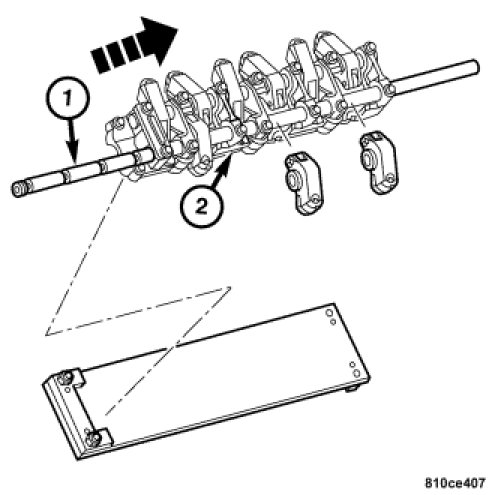

2. Insert the rocker arm shaft (1) into the camshaft bearing bridge (2) and through the rocker arms by tapping it gently with a mallet. Ensure that the rocker arms are not crooked.
3. Insert two camshaft bearing bridge bolts through the attachment holes in the camshaft bearing bridge to align and secure the rocker arm shaft. The oil supply holes in the rocker arm shaft points downward (toward the cylinder head).
4. Install the camshaft bearing bridge. Installation.
