Removal
REMOVAL 1.
Remove the upper
oil pan.
Engine Oil Pan - Removal.
2.
If necessary, rotate the
crankshaft slightly at the vibration damper.
3.

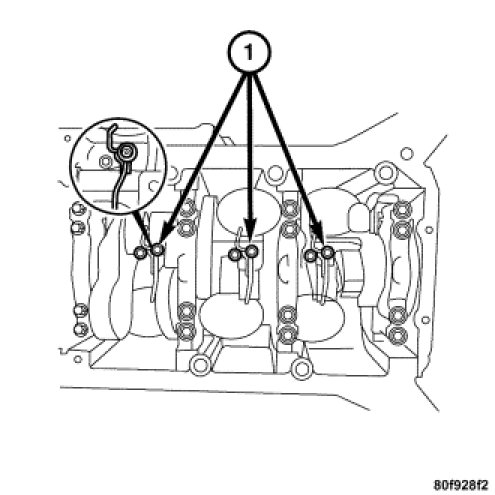

Remove the oil spray nozzle bolts (1) and the oil spray nozzles.
NOTE: Do not use hard objects to clean the oil spray nozzles. Replace the oil spray nozzles if they are blocked. 4.
Use compressed air only in the oil flow direction to clean the oil spray nozzles.
