Installation







INSTALLATION

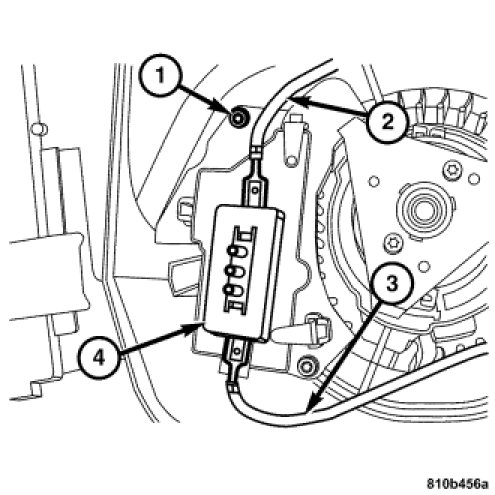

1. Install the blower motor resistor assembly (4) to the heater case.
2. Install the screws (1) attaching the blower motor resistor to the blower motor assembly.

NOTE: The electrical leads are a one-way connection to the blower motor.

3. Connect the electrical leads blue (2) and red (3).
4. Swing the blower motor door up.




5. Slide the motor door catch mounts (1) to the inside.

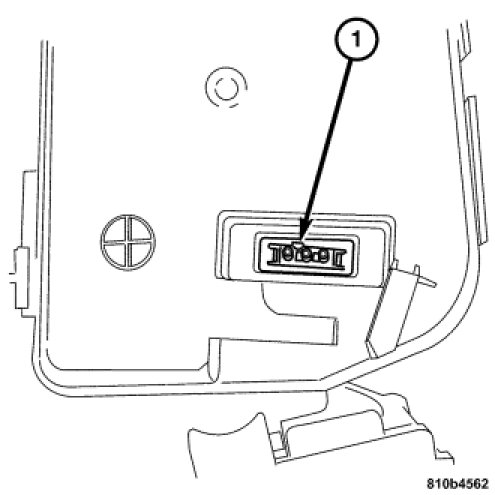

6. Connect the blower motor electrical connector (1).




7. Install the lower instrument panel cover. Instrument Panel - Installation.
