Installation
BLOWER MOTOR - LHD 1.
Install the
blower motor and squirrel cage as an assembly.
2.

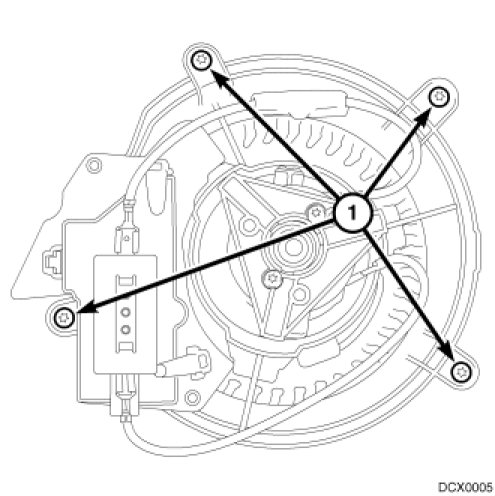

Install the screws (1) attaching the
blower motor to the heater housing.
3.
Swing the
blower motor door up.
4.
Install the
blower motor door catch mounts (1) by sliding them over to the detents.
5.
Connect the
blower motor electrical connector (1).
6.
Install the lower instrument panel cover (2).
Instrument Panel - Installation.
