A/C Condenser - Installation







INSTALLATION





1. Install the condenser.

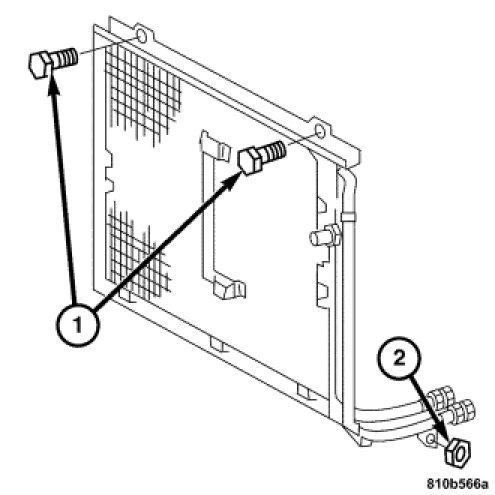

2. Tighten the mount for the condenser connection fittings (1-2).




3. Install the refrigerant lines (1) to the condenser. Tighten to 24 Nm (18 ft. lbs.).




4. Install the radiator. Radiator - Installation.
5. Install the lower radiator hose to the radiator.

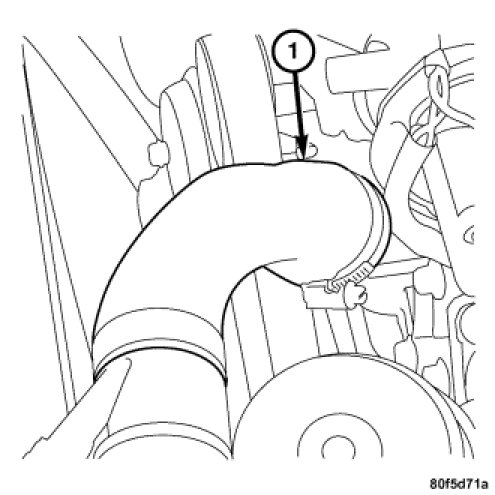

6. Install the upper radiator hose (1) to the radiator.

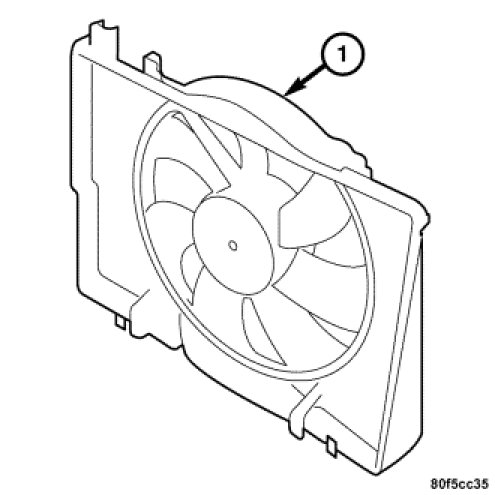

7. Install the radiator fan (1). Radiator Fan - Installation.




8. Install the coolant reservoir (1). Coolant Recovery Container - Installation.
9. Fill the coolant. Service and Repair.
10. Charge the refrigerant in the refrigerant system. Refrigerant System Charge.
11. Connect the negative battery cable.
