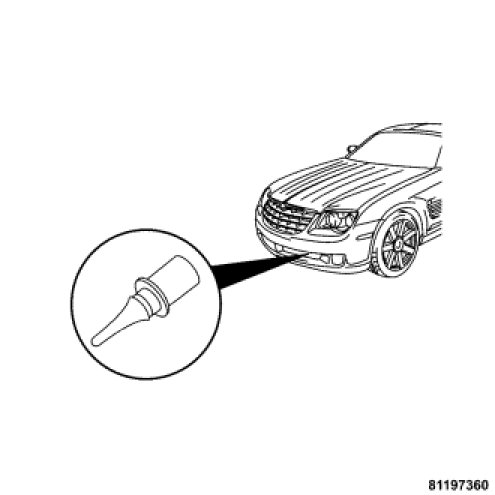

Removal
REMOVAL 1.
Disconnect the negative battery cable.
2.
Remove the engine compartment lower panel.
3.
Open the installation flap for left fog lamp located in the left inner fenderwell towards the front.
4.

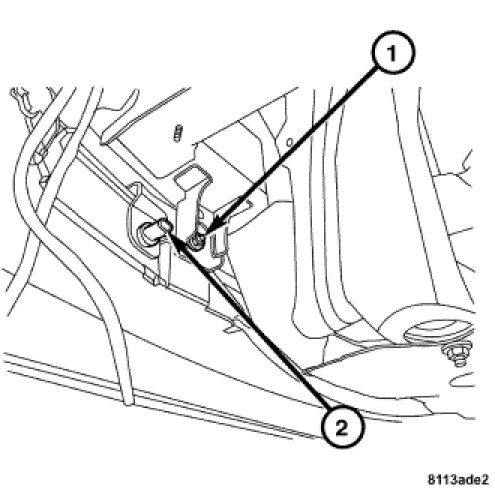

Disconnect the ambient air temperature harness connector (2) located next to the front fascia mount (1).
5.
Unclip the ambient air temperature from the front bumper support.
