Refrigerant System Service Port

REFRIGERANT SYSTEM SERVICE PORT

NOTE: Unique service port coupler sizes are used on the R-134a system to ensure that the refrigerant system is not accidentally contaminated by the use of the wrong refrigerant (R-12), or refrigerant system service equipment.

The two refrigerant system service ports are used to charge, recover/recycle, evacuate, and test the air conditioning refrigerant system.

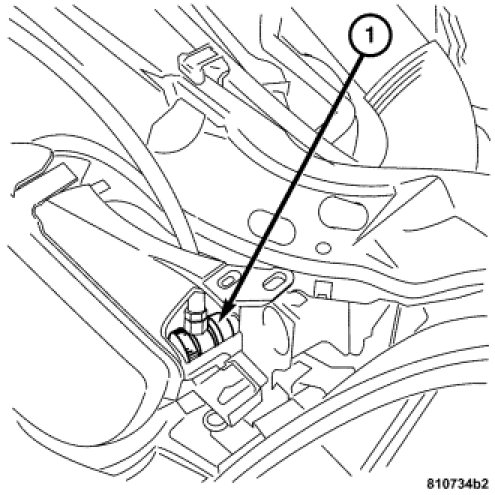

The high pressure service port (1) is located on the liquid line near the front of the engine compartment behind the front grille.

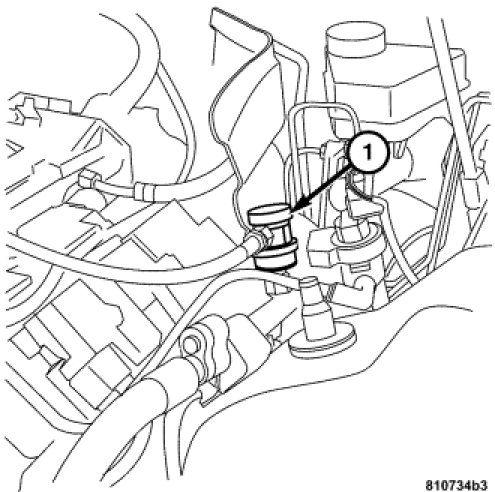

The low pressure service port (1) is located on the suction line on the left side of the engine compartment near the shock mounting.
