Installation
INSTALLATION 1.
Install the coolant circulation valve.
2.
Install the rubber mounts to the mounting points on the body side.
3.
Connect the electrical connector (1) on the coolant circulation valve.
4.

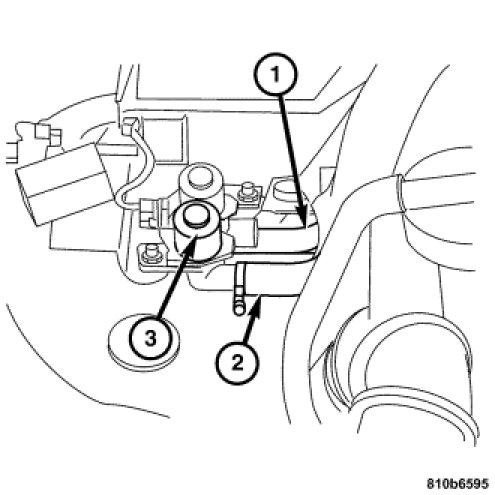

Install the heater water hose (2).
5.
Tighten the hose clamps on heater water hose.
6.
Unclamp the hot water hose.
7.
Tighten the top screw for the
heat shield.
8.
Top off the
cooling system.
Service and Repair.
