Installation







INSTALLATION

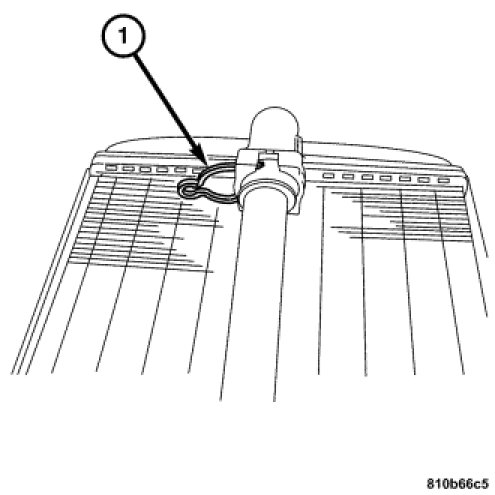

1. Install the heating water pipes on the heater core then install the clip (1).
2. Install the heat exchanger together with the heating water pipes.
3. Connect the socket yoke for heating water flow pipe.




4. Install the heating water return line (1).

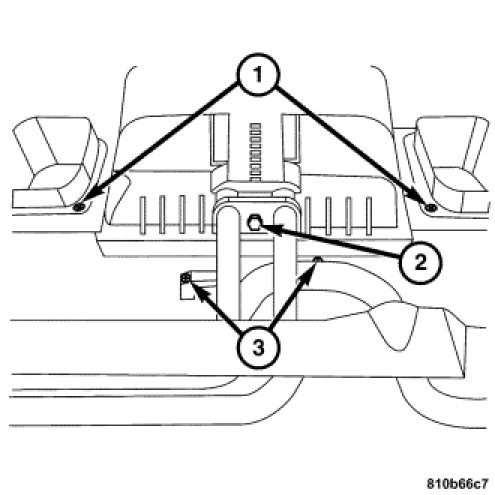

5. Install the guide (2) for the heating water flow pipe.
6. Install the cover (1).
7. Clip the spring clamps.

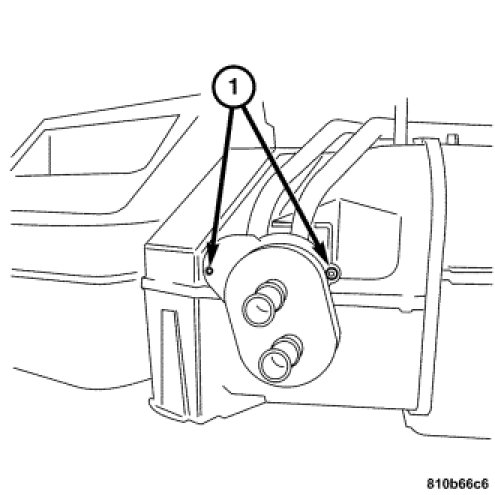

8. Install the bolts on the cover.

NOTE: If the heater core is being replaced, flush the cooling system Service and Repair.

9. Install HVAC housing. .
