Installation

INSTALLATION

1. Install the receiver/drier to the vehicle.
2. Install the mounting nuts (2).
3. Install the lower pressure line (1). Tighten to 17 Nm (12 ft. lbs.).
4. Install left inner fender (front section).
5. Install the wheel and tire assembly.

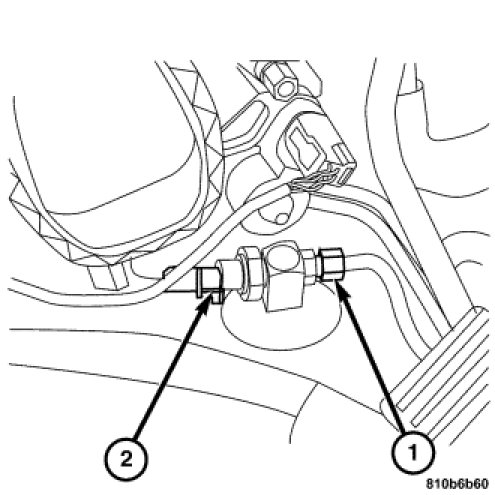

6. Install the refrigerant pressure sensor (2).
7. Install the upper pressure line (1). Tighten to 17 Nm (12 ft. lbs.).
8. Connect the electrical connector (2).
9. Charge the refrigerant the system.
