Installation
INSTALLATION 1.

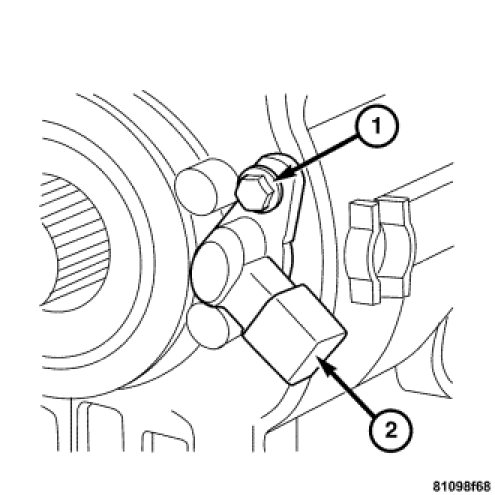

Install the
backup lamp switch (2) with a new o-ring seal.
2.
Install the
backup lamp switch retaining bolt (1). Tighten the bolt to 10 Nm (89 in. lbs.).
3.
Connect the
backup lamp switch harness connector (1).
4.
Lower the vehicle.
5.
Connect the negative battery cable.
6.
Check the operation of the backup lamps.
