Installation
INSTALLATION 1.

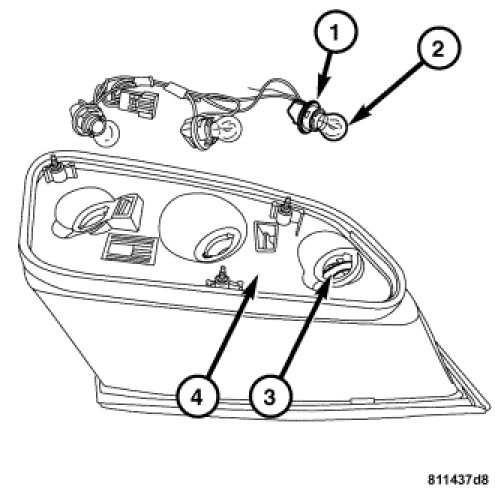

Install the bulb (2) into the
backup lamp socket (1).
2.
Insert the
backup lamp socket (1) into the rear lamp unit (4) and rotate clockwise to lock.
3.
Install the access panel onto the interior trim panel.
4.
Connect the negative battery cable.
