Description

DESCRIPTION

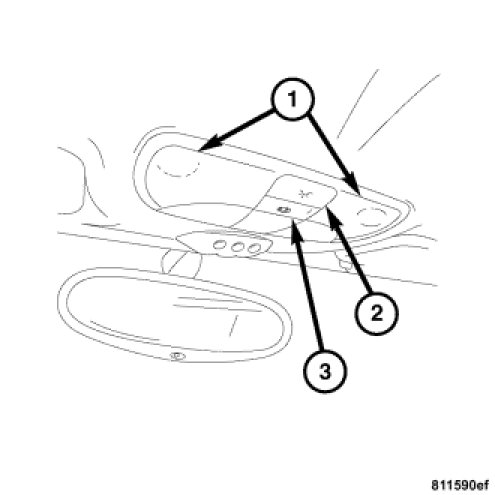

The courtesy lamps (1) provide overhead interior illumination when the doors are opened and the courtesy lamp defeat switch (3) is in the "-" position, or when the courtesy lamp switch (2) is pressed. The courtesy lamp defeat switch (3) can prevent the courtesy lamps operation when the doors are opened if the "O" position is selected. The courtesy lamp switch/unit cannot be adjusted or repaired. If faulty, worn, or damaged, the entire assembly must be replaced. For complete courtesy lamp switch/unit removal procedures, refer to Courtesy Lamp Switch/Unit removal.
