Removal
REMOVAL 1.
Disconnect the negative battery cable.
2.

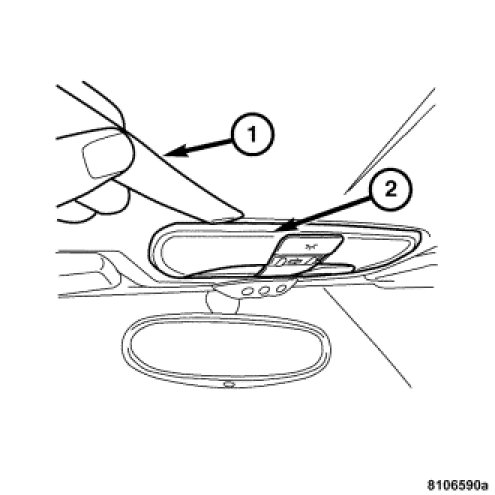

Using a trim stick (1), gently pry down and away from the courtesy lamp switch/unit body (2) to release the lens cover.
3.

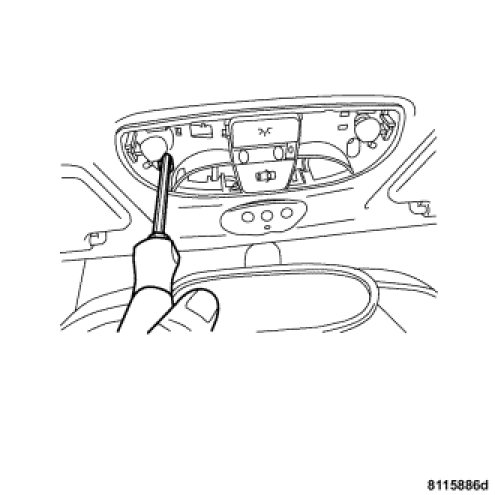

Remove the retaining screws.
4.
Using a trim stick, gently pry and lower the courtesy lamp switch/unit from the headliner opening.
5.
Disconnect the courtesy lamp switch/unit harness connector and remove from the vehicle.
