Installation







INSTALLATION

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

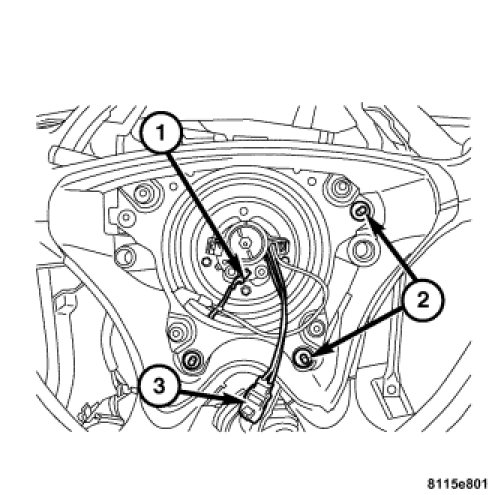

1. Install the horn switch into the steering wheel, then route the driver airbag harness and connector (3) through the opening in the horn switch.

NOTE: Be sure the horn switch preload springs are centered over the mounting studs (2).

2. Press downward evenly on the horn switch and install the horn switch retaining nuts. Tighten the nuts to 5 Nm (44 in. lbs.).
3. Connect the horn switch harness connector (1).
4. Install the airbag. Driver Airbag - Installation.




5. Connect the negative battery cable (2).
