Installation
INSTALLATION 1.

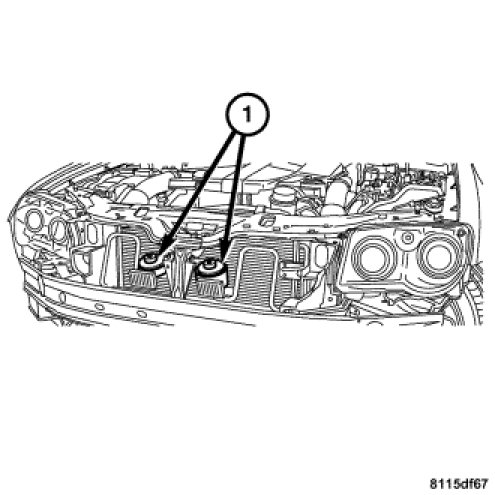

Position the
horn(s) (1) onto the vehicle core support and install the horn bracket mounting bolt. Tighten the bolt to 11 Nm (100 in. lbs.).
2.
Connect the
horn harness connector.
3.
Install the front grille.
Grille - Installation.
4.
Connect the negative battery cable.
