Removal
REMOVAL 1.
Disconnect the negative battery cable.
2.
Remove the front grille.
Grille - Removal.
3.

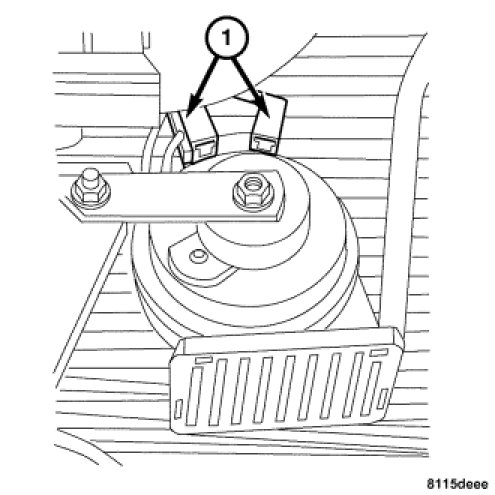

Disconnect the
horn harness connector (1).
NOTE: Do not disconnect the horn from the horn mounting bracket. 4.

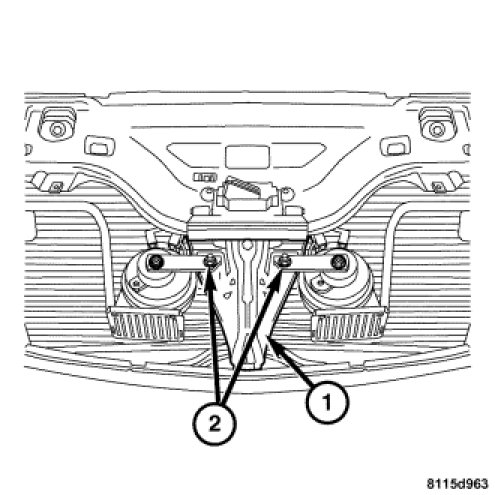

Remove the
horn bracket mounting bolt (2) from the core support brace (1).
5.
Remove the
horn from the vehicle.
