Front Lamp Unit - Installation







INSTALLATION





1. Install the front position lamp socket and the headlamp unit harness connector.
2. Position the headlamp unit into the fascia area.

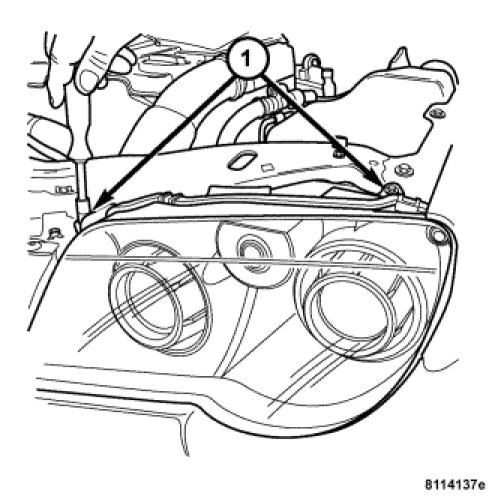

3. Install the upper retaining bolts (1) finger tight.
4. Install the lower retaining bolts finger tight.
5. Tighten the upper retaining bolts to 3-5 +/- 0.5 Nm (27-44 in. lbs.).
6. Tighten the lower retaining bolts to 4 +/- 0.4 Nm (35 in. lbs.).
7. Close the access panel in the inner fender well.
8. Connect the negative battery cable.
