Tire and Wheel Rotation

TIRE ROTATION

WARNING: DO NOT ROTATE TIRES IN A FRONT TO BACK FASHION. THE FRONT AND REAR TIRES ARE DIFFERENT SIZES AND WILL CAUSE VEHICLE MALFUNCTION.

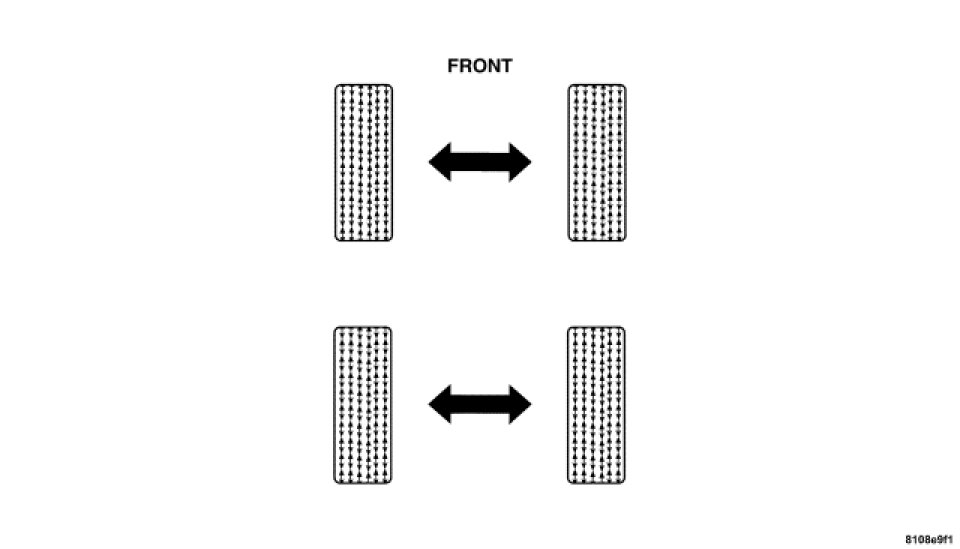

The only method of tire rotation is from the rear right side to rear left side and from the front right side to the front left side.

NOTE: This vehicle is equipped with a Tire Pressure Monitoring (TPM) system. The tires require Retraining when they are rotated. Use the DRB III(R) and follow the instructions to properly retrain all sensorsTesting and Inspection.





Tires on the front and rear of the vehicle operate at different loads and perform different steering, driving, and braking functions. For these reasons they wear at unequal rates and tend to develop irregular wear patterns. These effects can be reduced by rotating the tires at regular intervals. The benefits of tire rotation are:

- Increase tread life
- Maintain traction levels
- A smooth, quiet ride
