Tire Pressure Monitoring (TPM) Module - Installation







INSTALLATION





NOTE: The TPM module must be reprogrammed after installation. The TPM system will not function properly if the TPM module is not properly programmed.

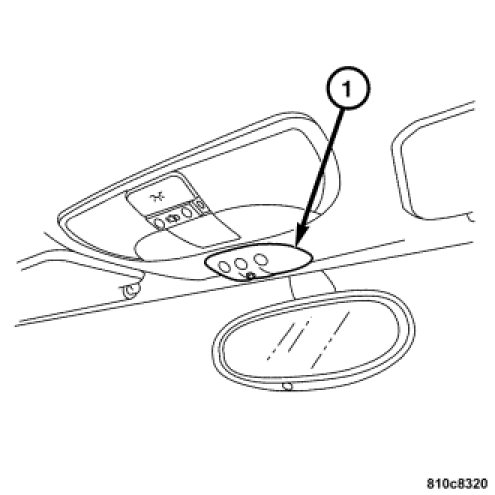

1. Install the Universal Garage Door Opener/Tire Pressure Monitor (1) by snapping it into the headliner.
2. Reprogram the TPM module Testing and Inspection.
3. Perform the following procedure to verify TPM system functionality:
- Connect the DRB III(R) to the vehicle.
- Drive the vehicle at 40 km/h (25 MPH) for at least 2 minutes.
- Using the DRB III(R) and an available assistant, monitor the Tire Pressure Sensors/Transmitters and verify the operation of all four Tire Sensors.
