Description
DESCRIPTIONThe

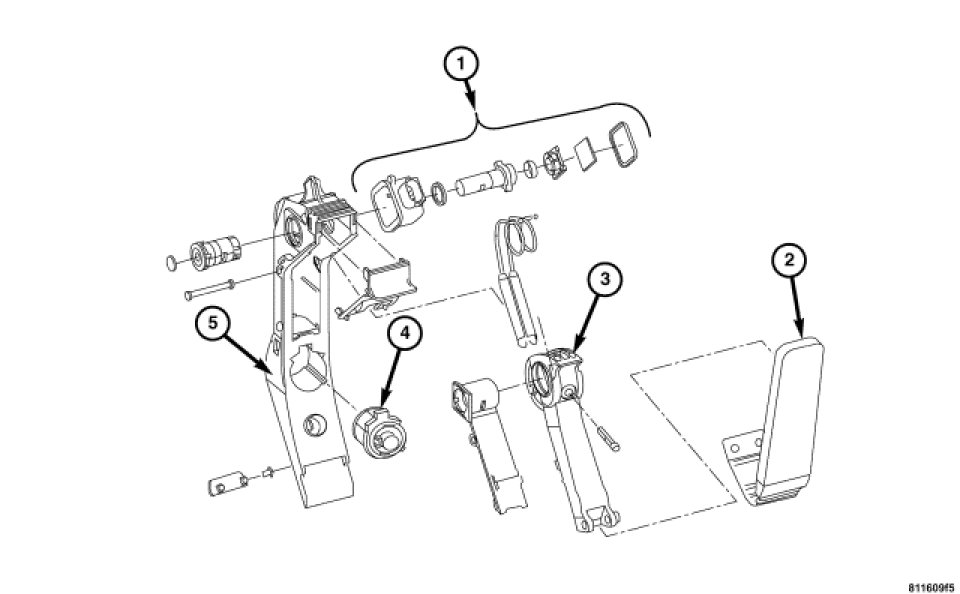

Accelerator Pedal Position Sensor (1) is located inside the Accelerator Pedal. The Accelerator Pedal Position Sensor (1) can not be serviced by itself. The Accelerator Pedal must be replaced as an assembly.
Accelerator Pedal - Removal.
