Crankshaft Position Sensor - Installation
INSTALLATION 1.

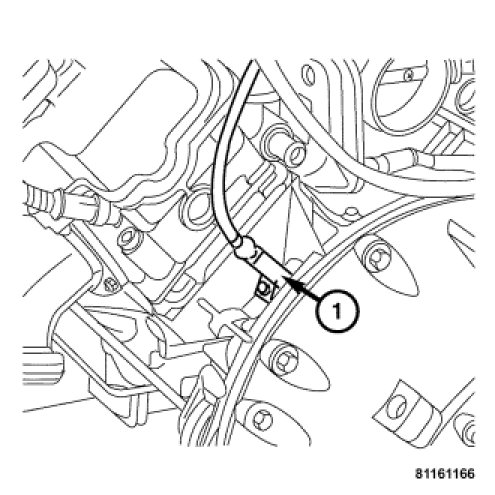

Install the
crankshaft position sensor (1) to the engine. Tighten to 8 Nm (71 in. lbs.).
2.
Connect the
crankshaft position sensor harness connector.
3.
Install the air cleaner housing.
Air Cleaner Housing - Installation.
4.
Connect the negative battery cable.
